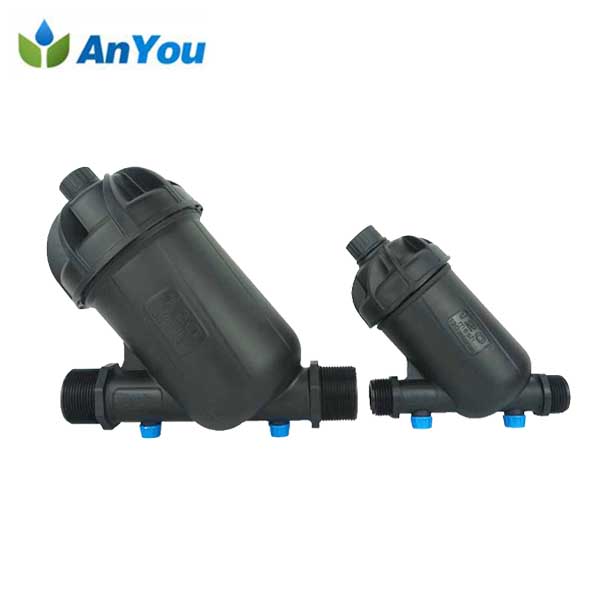

Y-type Filter for Irrigation

Short Description:

Anyou Industry provide 3/4” - 4” screen and disc filter for irrigation. The high quality filters combine large filtering area with low head loss making them ideal for high flows and large quantities of dirt. Filter body and cap connected by threaded connection to sustain high pressure & easy opening and closing. Filter the dirt in the walter, prevent clogging. Main part of head assembly.

Send email to us Download as PDF

Product Detail

Product Tags

1. Product Specification and package of the filter

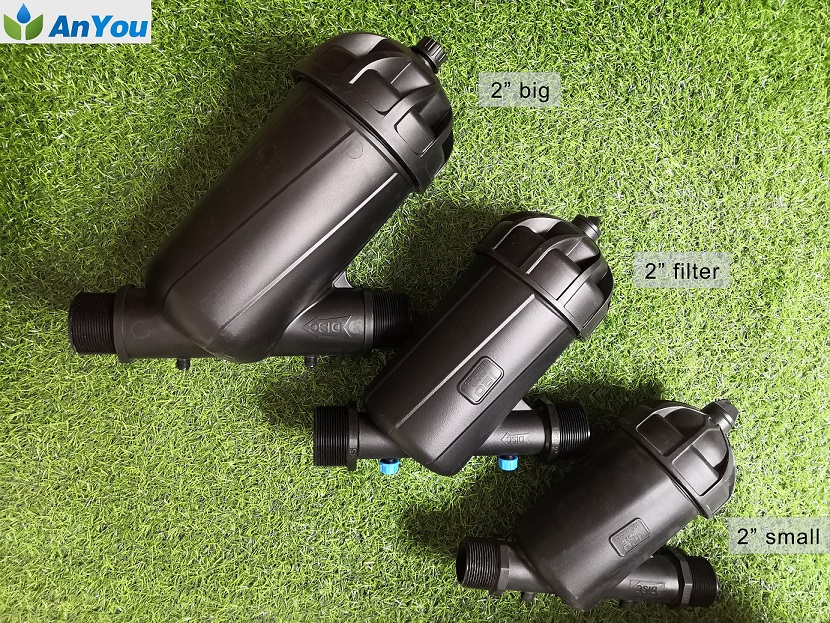

Y type filter	3/4”	1”	1.2”	1.5”	2”-small	2”	2” -big	2.5”
Max. pressure	8bar	8bar	8bar	8bar	8bar	8bar	8bar	8bar
Mesh	120	120	120	120	120	120	120	120
Max. flow	5m³/h	6m³/h	15m³/h	15m³/h	10m³/h	15m³/h	20m³/h	35m³/h
QTY/CTN (PC)	40	40	16	16	16	12	6	8
G.W/CTN-Screen filter (KG)	13	13	12	12	13	13	13	13
G.W/CTN-Disc filter (KG)	17	17	16.5	16.5	17	17	17	17
Vol./CTN (M³)	0.09	0.09	0.09	0.09	0.09	0.1	0.1	0.1

T type filter	1.2”	1.5”	2”-small	2”	2.5”	3”
Max. pressure	8bar	8bar	8bar	10bar	10bar	10bar
Mesh	120	120	120	120	120	120
Max. flow	10m³/h	10m³/h	10m³/h	30m³/h	40m³/h	50m³/h
QTY/CTN (PC)	15	15	15	1	1	1
G.W/CTN-Screen filter (KG)	12.5	12.5	12.5	5.8	5.8	7.3
G.W/CTN-Disc filter (KG)	15.5	17.5	17.5	7.3	7.5	9.3
Vol./CTN (M³)	0.1	0.1	0.1	0.06	0.06	0.07

H type filter	3”	4”	4”-long
Max. pressure	10bar	10bar	10bar
Mesh	120	120	120
Max. flow	50m³/h	70m³/h	100m³/h
QTY/CTN (PC)	1	1	1
G.W/CTN-Screen filter (KG)	7.5	7.5	9.5
G.W/CTN-Disc filter (KG)	11	11	13.5
Vol./CTN (M³)	0.08	0.08	0.11
