Rain Gun Sprinkler

Short Description:

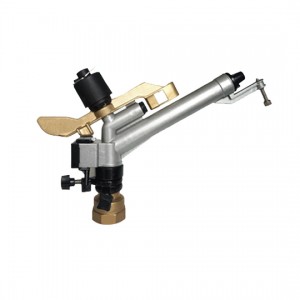

Due to the brass core and whole body painting, 1.5 inch female thread skipper rain gun sprinkler is durable. Spray radius is long, radius 22-41m. This rain gun sprinkler represent our capacity to integrate innovative technology, performance and reliability. This rain gun is a gear driven (turbine driven) sprinkler and with its smooth rotation does not cause the vibration damage to supporting infrastructure that similar sized impact sprinklers do. Especially designed for pivot end gun irrigation, environmental applications, sports field applications.


Product Detail

Application & Package

FAQ

Product Tags

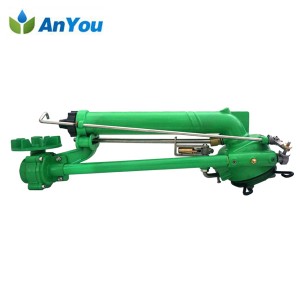

Rain gun sprinkler-Skipper

1. Product Parameter(Specification)of the Rain gun sprinkler

Rain Gun Size 1.5″ female thread
Material Aluminum+copper
Pressure 2-5 bar
Radius 22-41 m
Angle 24°
Both Part Circle & Full Circle adjustments

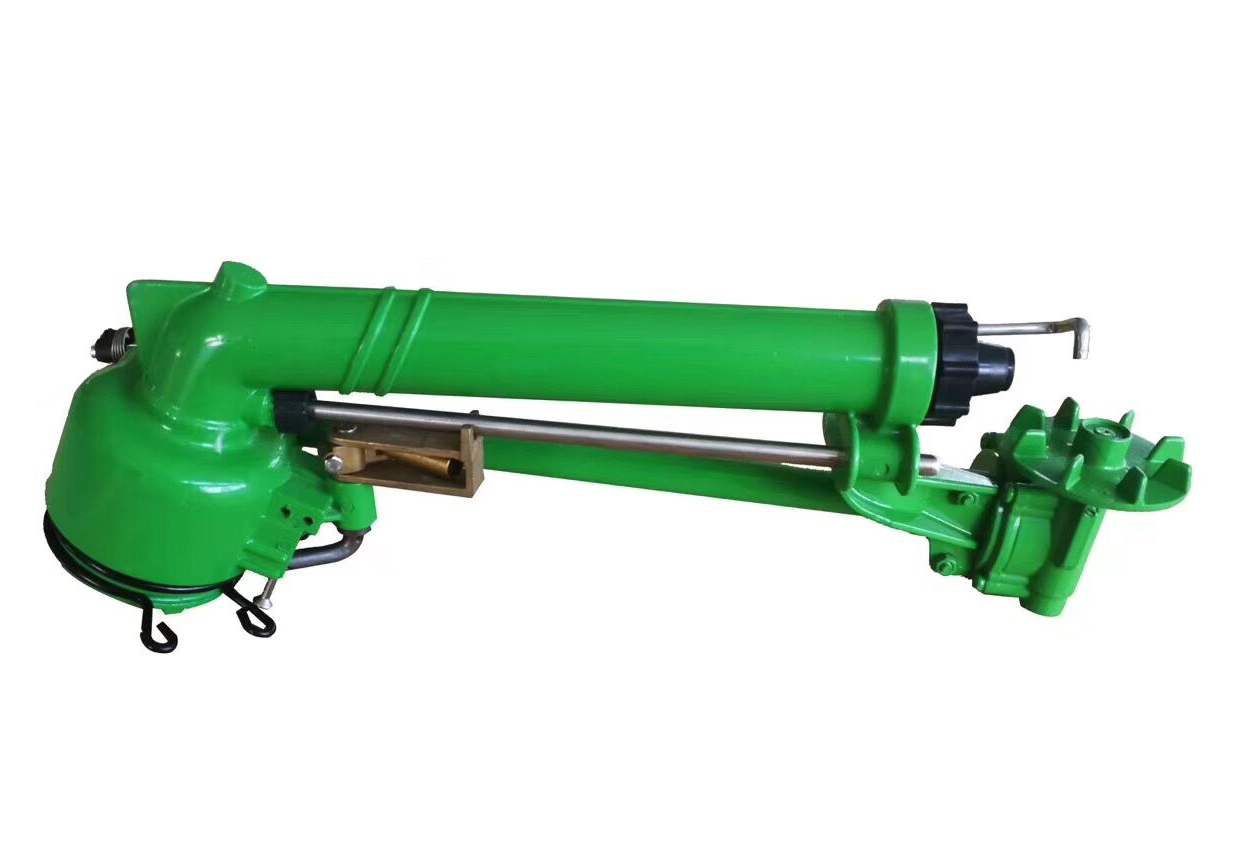

 big rain gun

Performance Data
Nozzle Pressure Radius Flow rate Irrigated Area Precipitation Rate
mm bar m l/min mm/h
12 2 22 159 1519 6.2
3 25 194 1962 5.9
4 28 224 2461 5.4
5 31 252 3017 5
14 2 24 195 1808 8.5
3 27 251 1289 6.5
4 30 290 2826 6.2
5 33 324 3419 5.7
16 2 26 2857 2123 7.2
3 29 315 2640 7.1
4 32 364 2217 6.8
5 35 406 3846 6.3
18 2 28 318 2641 7.7
3 31 404 3017 8
4 34 471 3629 7.8
5 37 521 4298 7.3
20 2 30 354 2826 7.5
3 33 490 3419 8.6
4 37 571 4298 8
5 41 617 5278 7

2. Product Feature of the rain gun sprinkler

(1) Key parts: brass core

(2) Whole body painting, more durable and beautiful

(3) Spray better with special part

(4) Long distance spray radius

(5) Good welding

(6) It is the circle operation, the angle is adjustable from 0 degree to 360 degree

(7) No need of land leveling


  • Previous:
  • Next:

  • Rain gun sprinkler-Skipper

    1. Application of the rain gun sprinkler

    (1) Pivot End Gun Irrigation

    - Traveler Irrigation

    - Solid Set Irrigation

    - Corn, Sugar Cane, Pineapple, Pastures, etc.

    (2) Environmental Applications

    - Feedlot Dust Suppression & Cooling

    - Waste water Applications

    - Mining Dust Suppression

    (3) Sports Field Applications

    - Turf Irrigation

    - Synthetic Turf Cooling & Conditioning



    2. Package


    Description

    Size

    QTY/CTN

    Vol./CTN

    G.W/CTN

    PC

    KG

    rain gun

    Rain gun

    AY-1030B

    1-1/4″

    10

    0.037

    13.5

    rain gun

    Rain gun

    AY-1030C

    1.5″

    10

    0.048

    18

    rain gun

    Rain gun

    AY-1040B

    2″

    5

    0.099

    19

    big gun

    Bain gun

    AY-1050A

    2”

    1

    0.062

    9.5

    Rain gun

    Rain gun

    AY-1050D



    2”

    1

    0.062

    10.5

     rain gun Rain gun sprinklerAY-1050A-Thread 1.5″ female thread
     1 0.022
     5

    pvc layflat hose

    pvc layflat hose

    connector

    hose clamp





    FAQ

    (1) Which type of hose for the Rain Gun?

    A: PVC lay flat hose or PVC Fire hose

    (2) Which size of hose for the Rain Gun?

    A: 2 inch or 2.5 inch PVC lay flat hose or PVC Fire hose

    Note:

    2 inch PVC hose for 1.5 inch PY30 rain gun

    2.5 inch PVC hose for 2.5 inch PY50 rain gun

    (3) Rain gun do not rotate, how to adjust the Rain Gun?

    A: Mainly four reasons below

    Pressure is low: change pump (lift 40m, flow rate 20m³/h, power 4kw).

    Spring is tight:

    Angle is small:

    Water is dirty: choose another water source and use disc filter.

    (4) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (5) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
