Rain Gun PY30
Rain Gun PY30
1. Product Parameter（Specification）of the Rain Gun PY30
| Rain Gun Size | 1.5” |
| Material | Aluminum + brass core |
| Pressure | 3-5 bar |
| Radius | 22-25 m |
| Flow rate | 7-9 m³/h |
2. Product Feature of the Rain Gun PY30
(1) Key parts: brass core
(2) Whole body painting, more durable and beautiful
(3) Spray better with special part
(4) Long distance spray radius
(5) Good welding
(6) It is the circle operation, the angle is adjustable from 0 degree to 360 degree
(7) No need of land leveling
Rain Gun PY30
1. Application of the Rain Gun PY30
Cucumber, Lettuce, Cabbage, Green pepper, Yellow Pepper, Carrot, Golden melon, Water melon, Plantain, Banana, Coffee, Maize, Corn, Wheat, etc.
2. Package
|
Photo |
Description |
Size |
QTY/CTN |
Vol./CTN |
G.W/CTN |
|
PC |
M³ |
KG |
|||
|
|
Rain gun PY30 |
1.5” |
14 |
0.06 |
17 |
|
|
Rain gun PY40 |
2” |
10 |
0.11 |
23 |
|
|
Rain gun PY50 |
2.5” |
10 |
0.185 |
31 |
|
|
Rain gun PY40 AY-1040 |
2” |
10 |
0.076 |
21 |
|
|
Rain gun PY50 AY-1050P |
2.5” |
6 |
0.076 |
19 |
|
|

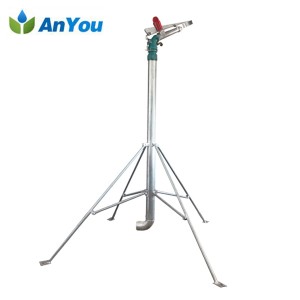

Stand for rain gun |
1.2 m |
10 |
0.13 |
30 |
|
|
Stand for rain gun |
1.5 m |
10 |
0.13 |
35 |
|
|
|
|
|
Rain Gun PY30
FAQ
(1) Which pump is ok for the Rain Gun PY30?
A: Gasoline pump, diesel pump, submersible pump, centrifugal pump all ok.
Pump data: lift 40m, flow rate 20m³/h, power 4kw.
(2) Which type of hose for the Rain Gun PY30?
A: PVC lay flat hose or PVC Fire hose
(3) Which size of hose for the Rain Gun PY30?
A: 2 inch or 2.5 inch PVC lay flat hose or PVC Fire hose
Note:
2 inch PVC hose for 1.5 inch PY30 rain gun
2.5 inch PVC hose for 2.5 inch PY50 rain gun
(4) Rain gun do not rotate, how to adjust the Rain Gun PY30?
A: Mainly four reasons below
Pressure is low: change pump (lift 40m, flow rate 20m³/h, power 4kw).
Spring is tight:
Angle is small:
Water is dirty: choose another water source and use disc filter.
(5) Pressure of the Rain Gun PY30?
A: Suggested pressure is 3 bar to 5 bar.
8 bar or higher pressure is ok, and the radius is longer, only if the irrigation pipe can withstand the pressure.
(6) Can you provide C/O certificate of origin?
A: Yes. C/O, Invoice, Packing list, Original B/L
(7) Are you sprinkler factory or trading?
A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
