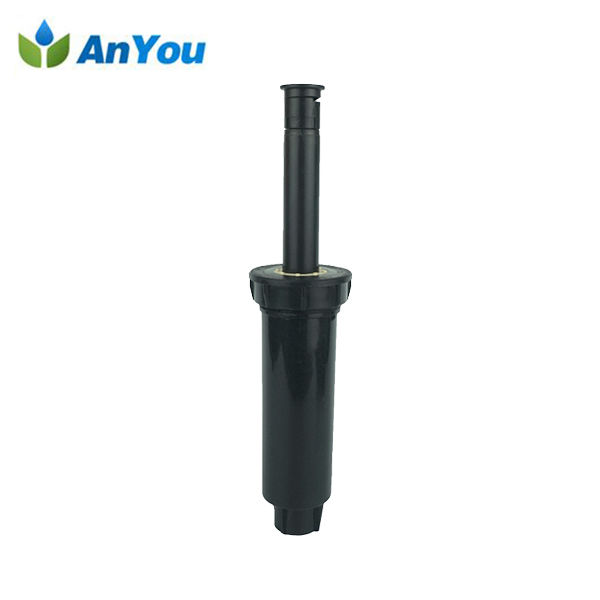

Pop-Up Spray Head

Short Description:

Automatic agricultural irrigation pop-up spray head with 1/2 inch female thread connection.

• Usually the nozzle is hidden in the grass. After opening, the center lifting column rises under the action of water pressure, the top nozzle is sprayed in a plane, and the water spray is evenly distributed. There are no dead ends in the spray range. The full circle and the fan-shaped spray are integrated, and the top fan shape is adjusted, and the operation is simple. 25° to 360° adjustable.

• This pop-up spray head is suitable for irrigation of green belt, flower bed, lawn, etc.

Send email to us Download as PDF

Product Detail

Product Tags

1. Product Specification of the pop-up spray head

Size	1/2″ female thread
Body height	15 cm
Pop up height	10 cm
Material	plastic
Pressure	2-3 bar
Radius	3-7 m
Flow rate	0.8-1.2 m³/h
QTY/CTN	100 PCS/CTN
CTN size	513824cm
Vol./CTN	0.047
Weight	11 kg

2. Product Feature of the pop-up spray head

(1) The plastic parts are made of high-strength anti-aging engineering plastics such as ABS and POM, and the lifting springs are made of stainless steel springs

(2) A filter net is installed inside the lifting column to prevent the nozzle from being clogged, and the nozzle and the filter net are convenient to be replaced

(3) The dirt on the lifting column can be quickly and automatically cleaned, which can adapt to the harsh field conditions and ensure the reliable operation of the nozzle

(4) The full circle and the fan-shaped spray are integrated, and the top fan shape is adjusted, and the operation is simple
