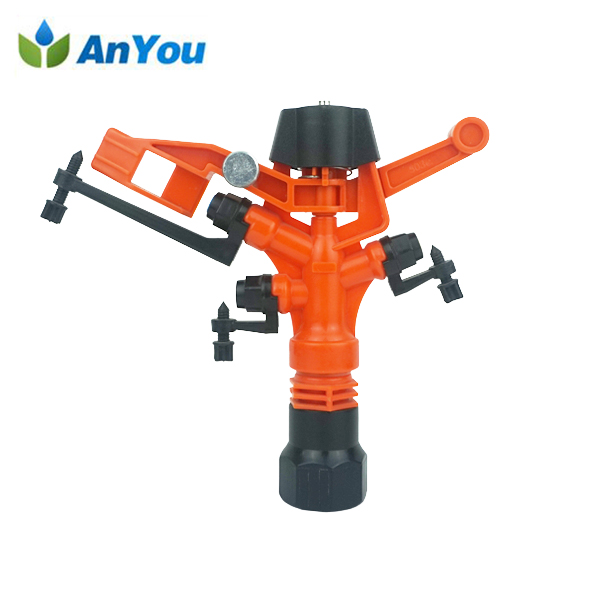

Plastic Impact Sprinkler

1. Product Parameter（Specification）of the plastic impact sprinkler

2. Product Feature of the plastic impact sprinkler

(1) Well balanced for water distribution with maximum water-use efficiency

(2) Diffuser arm improves water distribution pattern and uniformity

(3) Nozzles with integrated stream straightening vane for long distance

(4) High quality plastic body withstands UV radiation, chemicals and accidental impact

(5) Spring are made of stainless steel

(6) More stable movement with metal weight hammer on the arm

(7) Long-lasting performance and labor-saving maintenance

(8) Reduced sensitivity to clogging and higher resistance to wind

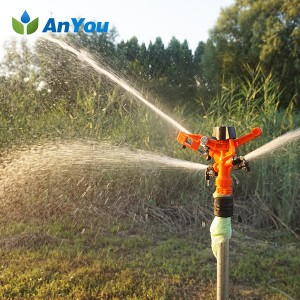

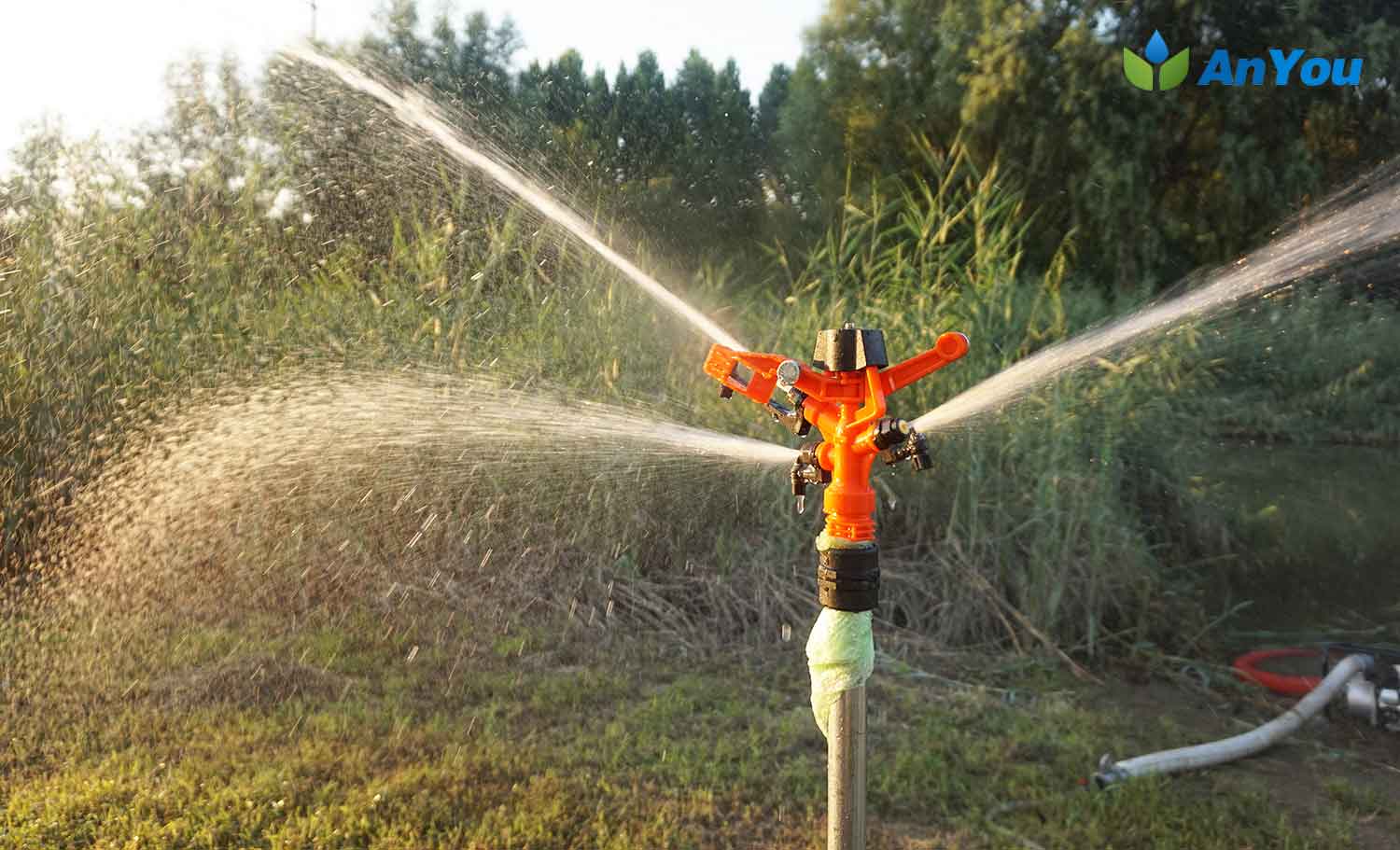

1.Application of the plastic impact sprinkler

For field crops and vegetable irrigation.

2.Package

Phtoto	Description	Size	QTY/CTN	Vol./CTN	G.W/CTN
			PC	M³	KG
	Plastic impact sprinkler AY-5035D	3/4” male thread	100	0.045	12 kg
	Plastic impact sprinkler AY-5022A	1/2” male thread	400	0.072	21.5
	Plastic impact sprinkler AY-5003	1/2” male thread	300	0.12	21.5
	Plastic impact sprinkler AY-5005	1/2” male thread	300	0.12	21.5
	Plastic impact sprinkler AY-5008	1/2” male thread	300	0.12	21.5
	Metalimpact sprinkler AY-5302	1/2” male thread	100	0.067	21.5
	Stand for sprinkler 1/2″ AY-9503	1/2” female thread	50	0.15	21.5
	PVC soft pipe for sprinkler AY-9138	8/11 (9/12)	100 M/ROLL		7.5 KG/ROLL

(1) What’s the main material of plastic impact sprinkler?

A: POM

(2) What’s the spring material of plastic impact sprinkler?

A: Stainless steel ( SS )

(3) Plastic impact sprinkler, part circle ( angle adjustable) or full circle?

A: 360 degree full circle

(4) Is the plastic impact sprinkler resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation, chemicals and accidental impact.

(5) Can you provide C/O certificate of origin?

A: Yes. C/O, Invoice, Packing list, Original B/L

(6) Are you sprinkler factory or trading?

A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
