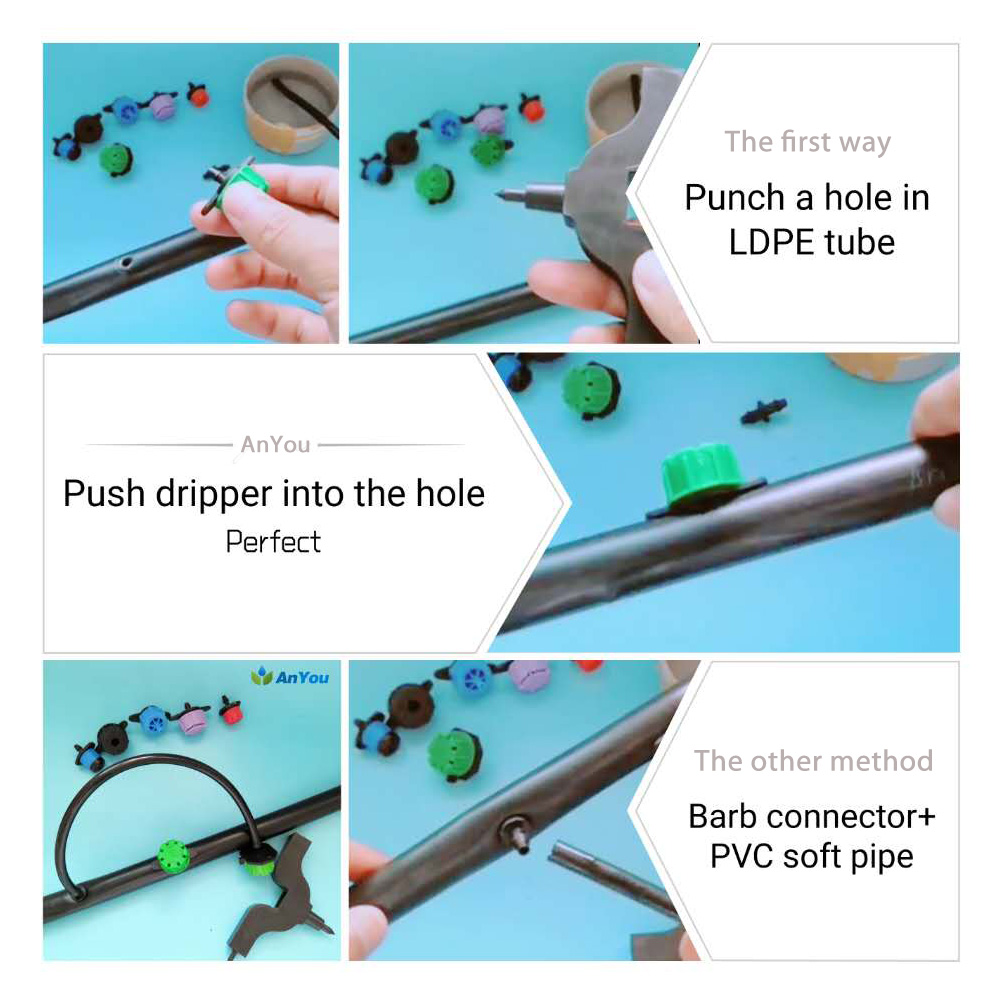

Two ways in which button drippers can be put into a drip irrigation system.

• The first way: install the button drippers directly into a PE tube.

• To do this, we need a hole punch to creat a hole in our PE tube.

• Then we just need to push the barbed end of the dripper into the hole that was created.

( Material: Hole punch, Dripper, AnYou 16mm LDPE tube, Drip connectors )

• The other method requires a hole as well.

• One side of the barbed connector get pushed into the hole that was created in the PE tube.

• The other side of the barbed connector, we are going to attach PVC soft pipe.

• The remaining free end of the PVC soft pipe is then pushed over the barbed of the dripper.

( Material: Double barb connector, Dripper, Hole punch, PVC soft pipe, Drip connectors)

These are the two ways that drippers can be incorporated into any drip irrigation system.
