1. Product Parameter（Specification）of the micro sprinkler AY-1008A

 Note: Before attach the sprinkler head, flush the line first, keep any little tiny debris or sand from going throuth those nozzles and clogging them.

2. Product Feature of the micro sprinkler AY-1008A

(1) No bridge emitter

(2) Vibrating needle constantly cleaning the orifice and prevents accumulation of dirt inside the nozzle

(3) Insect protected- Needle shuts the nozzle off at the end of the irrigation

(4) Well balanced for water distribution with maximum water-use efficiency

(5) High quality plastic body withstands UV radiation, chemicals, and accidental impact

1.Application of the micro sprinkler AY-1008A

(1) Used for irrigation of trees with medium/small root zone. Such as dragon fruit, pepper, grapefruit, butter, citrus, durian, etc.

(2) Can be installed in upside down position for reduced wetting diameter.

This is applicable for young plantation, enabling the grower to irrigate only the root zone and thus save water. After the tree grows the emitter can be set upright to irrigate the larger root zone.

(3) For greenhouse irrigation.

(4) For landscape and gardening.

2.Package

Photo	Description	Size	QTY/CTN	Vol./CTN	G.W/CTN
			PC	M³	KG

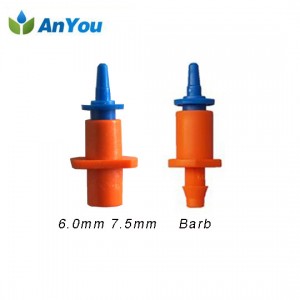

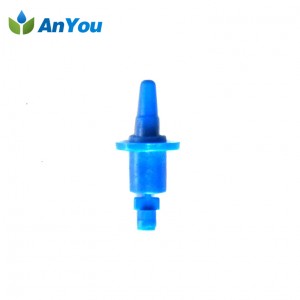

	Micro sprinkler AY-1008C	6.0 male	40000	0.062	23
	Micro sprinkler AY-1008A	barb	10000	0.062	20
	Micro sprinkler AY-1008	6.0 female	10000	0.062	20
	Micro sprinkler AY-1108	6.0 male	5000	0.044	20.5
	Micro sprinkler AY-1119	6mm, 7.5mmfemale	5000	0.062	22.5
	Micro sprinkler AY-1116	6.0 female	1000	0.074	20.5
	Micro sprinkler AY-1260	6.0 female	5000	0.066	21
	Five head fogger AY-1005	6.0 female	1000	0.062	30
	Five head fogger AY-1005B	6.0 female	1000	0.062	37
	Reducing connector for micro sprinkler AY-9113	1/2″ * 6.0mm male	5000	0.076	22
	Valve for micro sprinkler AY-9160	6.0mm * barb	5000	0.046	20
	Valve for micro sprinkler AY-9160C	double barb	5000	0.046	20

(1) What’s the main material of micro sprinkler AY-1008A?

A: POM

(2) Micro sprinkler AY-1008A, full circle?

A: Yes, 360 degree full circle

(3) Is the micro sprinkler AY-1008A resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact

(4) Can you provide C/O Form E?

A: Yes. C/O Form E, Invoice, Packing list, Original B/L

(5) Are you sprinkler factory or trading?

A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
