Four Branch Arrow Dripper

Product Parameter（Specification）of the Four Branch Arrow Dripper

 When working with multiple outlets:

(1) Use labyrinth stakes to improve uniformity

(2) Minimum recommended working pressure: 1 bar

(3) Maximum recommended flow per outlet: 2.0 l/h

(4) Minimum recommended flow per outlet:

•  Flat surface and uniform tube length – 0.5 l/h

•  On a slope or uneven elevation – 1.0 l/h

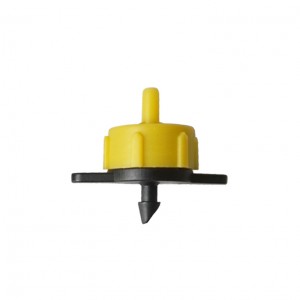

(5) Button Dripper not included. Keeping drip tube elevated above pots for complete draining after system shutdown will reduce clogging in the manifold micro-tubing from algae or debris.

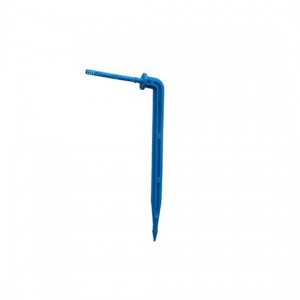

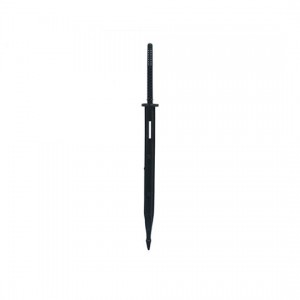

(6) Two type: straight drip arrow and bend drip arrow

(7) With anti clogging filter for highly effective filtration

Four Branch Arrow Dripper

1. Application of the Four Branch Arrow Dripper

Irrigation for use in greenhouse and nursery applications or in hydroponic systems.

2. Package
