Flat Emitter Drip Tape
Flat Emitter Drip Tape
1. Product Parameter（Specification）of the Flat Emitter Drip Tape
|
Thickness |
Maximum pressure |
||
|
0.15 mm |
6 mil |
1.0 bar |
14.5 psi |
|
0.18 mm |
7 mil |
1.0 bar |
14.5 psi |
|
0.2 mm |
8 mil |
1.4 bar |
20 psi |
|
0.3 mm |
12 mil |
1.6 bar |
23 psi |
2. Product Feature of the Flat Emitter Drip Tape
(1) For irrigation of crops, spacing from 10cm to 60cm.
(2) For surface and subsurface irrigation.
(3) Made by 100% virgin PE raw material and advanced production technology, anti-UV, anti-corrosion, and durability.

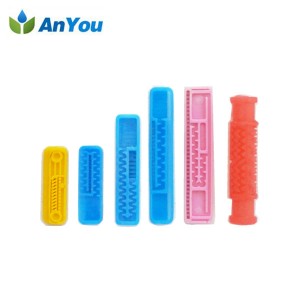

(4) Highly resistance to clogging. Molded emitters stand up to challenging water and organic fertilizers.
(5) Maximum flexibility for storage, transport and handling.
(6) Blue ( white or yellow ) line on the surface is available, insures proper outlet placement.
(7) It helps to maintain the looseness of soil.
(8) Available ideal for distributing water on the soil not on leaves.
(9) Usually operated at a lower pressure than other types of pressurized irrigation, reducing energy costs.
(10) Package is customizable. 500m/roll, 800m/roll, 1000m/roll, 1500m/roll, 2000m/roll, 3000m/roll.
(11) Company name and manufacture time is available on drip tape, ensure traceability of drip tape quality problems.
(12) Drip tape test rate up to 50% at 2 bar, better quality assurance.
1. Application of the Flat Emitter Drip Tape
(1) Irrigation for orchards, vineyards, fruit, vegetables, field crops and green house.
(2) For grape, strawberry, watermelon, corn, sunflower, coffee, tea, tomato, cucumber, pepper, carrot, potato, carlic, chilli, onion, cabbage, etc.

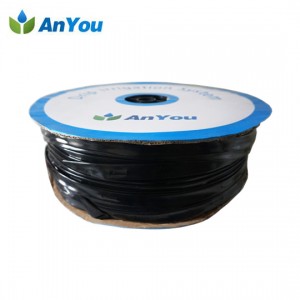

2. Package
|
Drip tape with flat emitter |
Spacing: 10cm |
1000m/roll |
|
Spacing: 15cm |
1000m/roll |
|
|
Spacing: 20cm |
1000m/roll |
|
|
Spacing: 25cm |
1000m/roll |
|
|
Spacing: 30cm |
1000m/roll |
|
|
Drip tape with flat emitter |
Spacing: 10cm |
1000m/roll |
|
Spacing: 15cm |
1000m/roll |
|
|
Spacing: 20cm |
1000m/roll |
|
|
Spacing: 25cm |
1000m/roll |
|
|
Spacing: 30cm |
1000m/roll |
|
|
Spacing: 40cm |
1000m/roll |
|
|
Spacing: 50cm |
1000m/roll |
|
|
Drip tape with flat emitter |
Spacing: 10cm |
1500m/roll |
|
Spacing: 15cm |
1500m/roll |
|
|
Spacing: 20cm |
1500m/roll |
|
|
Spacing: 25cm |
1500m/roll |
|
|
Spacing: 30cm |
1500m/roll |
|
|
Spacing: 40cm |
750m/roll; 1500m/roll |
|
|
Spacing: 50cm |
750m/roll; 1500m/roll |
|
|
Drip tape with flat emitter |
Spacing: 10cm |
1000m/roll |
|
Spacing: 15cm |
1000m/roll |
|
|
Spacing: 20cm |
1000m/roll |
|
|
Spacing: 25cm |
1000m/roll |
|
|
Spacing: 30cm |
1000m/roll |
|
|
Drip tape with flat emitter |
Spacing: 15cm |
500m/roll |
|
Spacing: 20cm |
1000m/roll |
|
|
Spacing: 25cm |
1000m/roll |
|
|
Spacing: 30cm |
1000m/roll |
Note: 0.2mm: 650.000m for 20GP, 1650,000m for 40HQ
20 GP container: 33.2 m³，30.48 t; 40 HQ container: 76.3 m³，32.5 t;
(1) What’s the main material of drip tape with flat emitter?
A: PE
(2) Is drip tape original ( new )material ?
A: Original ( new) Material
(3) Is the drip tape with flat emitter resistant to UV radiation?
A: Yes. High quality plastic body withstands UV radiation
(4) Is drip tape ok for subsurface irrigation?
A: Ok, ≤ 5 cm underground
(5) What is the length of Drip Tape required for one acre?
A: 4000 meters/acre. More fittings, quantity and details, please check《What drip irrigation kit do you need for 1 acre farm》
(6) Can you provide C/O certificate of origin?
A: Yes. C/O, Invoice, Packing list, Original B/L
