Big Gun
Big gun
1. Product Parameter（Specification）of the big gun
| Big Gun Size | 2″ flange |
| Material | Aluminum |
| Pressure | 2-7 bar |
| Radius | 26-53 m |
| Angle | 23° |
| Accessories | With flange and gasket |
| Both Part Circle & Full Circle adjustments | |
2. Product Feature of the big gun
(1) Key parts: brass core
(2) Whole body painting, more durable and beautiful
(3) Spray better with special part
(4) Long distance spray radius
(5) Good welding
(6) It is the circle operation, the angle is adjustable from 0 degree to 360 degree
(7) No need of land leveling
Big gun

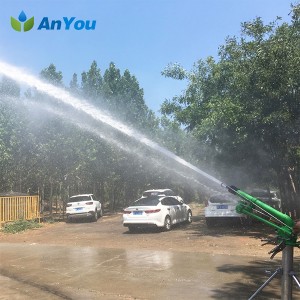

1. Application of the big gun
(1) Pivot End Gun Irrigation
- Traveler Irrigation
- Solid Set Irrigation
- Corn, Sugar Cane, Pineapple, Pastures, etc.
(2) Environmental Applications
- Feedlot Dust Suppression & Cooling
- Waste water Applications
- Mining Dust Suppression
(3) Sports Field Applications
- Turf Irrigation
- Synthetic Turf Cooling & Conditioning
2. Package
|
Photo |
Description |
Size |
QTY/CTN |
Vol./CTN |
G.W/CTN |
|
PC |
M³ |
KG |
|||
|
|

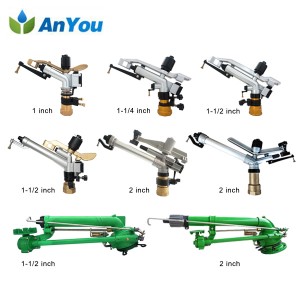

Rain gun AY-1030B |
1-1/4″ |
10 |
0.037 |
13.5 |
|
|
Rain gun AY-1030C |
1.5″ |
10 |
0.048 |
18 |
|
|
Rain gun AY-1040B |
2″ |
5 |
0.099 |
19 |
|
|
Bain gun AY-1050A |
2” |
1 |
0.062 |
9.5 |
|
|
Rain gun AY-1050D
|
2” |
1 |
0.062 |
10.5 |
|
|
|
|
|
|
FAQ
(1) Which type of hose for the Rain Gun?
A: PVC lay flat hose or PVC Fire hose
(2) Which size of hose for the Rain Gun?
A: 2 inch or 2.5 inch PVC lay flat hose or PVC Fire hose
Note:
2 inch PVC hose for 1.5 inch PY30 rain gun
2.5 inch PVC hose for 2.5 inch PY50 rain gun
(3) Rain gun do not rotate, how to adjust the Rain Gun?
A: Mainly four reasons below
Pressure is low: change pump (lift 40m, flow rate 20m³/h, power 4kw).
Spring is tight:
Angle is small:
Water is dirty: choose another water source and use disc filter.
(4) Can you provide C/O certificate of origin?
A: Yes. C/O, Invoice, Packing list, Original B/L
(5) Are you sprinkler factory or trading?
A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
